Automatic uv drying machine

Automatic uv drying machine

  • Overview

  • Inquiry

  • Related Products

Xinqinfeng's Automatic uv drying machine is an ideal solution for anyone buying a fast, efficient, and reliable method to dry their products. This device that is revolutionary UV light to quickly dry products while making sure that they are prepared to found in almost no time.



The Xinqinfeng Automatic uv drying machine is great for a range of applications, rendering it a versatile and investment that is valuable just about any business. You have the job done quickly and effortlessly whether you need to dry printed materials, coatings, or other products, this machine might help.



One of the key benefits of the Xinqinfeng Automatic drying machine is its speed. This revolutionary product makes usage of UV light to dry products in only minutes unlike old-fashioned drying techniques, which could usually take hours if not days to items that are completely dry. This means you may get your products or services or services back in circulation more quickly, reducing downtime and boosting your efficiency.



Another advantageous asset of the Xinqinfeng Automatic uv drying machine is its dependability. This device is made to be sturdy and durable, ensuring that it could withstand the rigors of day-to-day found in a busy environment that is commercial. And with high rate safety features, including shut-off this is certainly automatic heat monitoring, you will end up assured that your particular items will likely to be dried properly and efficiently every time.



The Xinqinfeng Automatic uv drying machine surprisingly user friendly. Simply load your merchandise in to the device, set the timer and heat settings relating to the needs you have, and permit the machine perform some rest. This revolutionary product will quickly be an essential tool in your toolbox of equipment with its intuitive settings and simple operation.



Finally, the Xinqinfeng Automatic uv drying machine built to last. This device was created to offer many years of dependable solution featuring its top-quality construction and design that is robust. Along with its low-to-zero maintenance needs, you are able to count on it to keep time that is performing and day trip, also under heavy usage.





Product Description

A. Instant drying; avoid drying waiting time, greatly reducing the coating process time.

B. It can be directly connected with the coating machine. The machine can be connected to the drum type or curtain coating machine. After coating, the finished product is directly dried, eliminating the trouble of handling.

C. Coating surface hardness increased, bright color.

D. Extensive drying function: wood, plywood, furniture, steel, building materials, lenses, leather and other UV coating after drying.



Product Specification:

No.

Item

Specification

A

The size

Size:L2500 × W690(Effective width) x H800mm(Qty:1pcs )

1

The racks

The body,foot of equipment is made of welding steel box section. The foot stool is equipped with M14 adjustable foot cup. the steering wheel is equipped.

2

The Conveyor Belt

The belt height to the ground is 0.8 meters. The width of steel mesh belt is 690mm, the circle length is 5 meters. The length of feeding area is 500mm,the effective height is 250mm, which is adjustable.

3

Motor

The motor use 60W electronic speed regulating motor. the line speed is adjusted Taiwan ZONCN frequency transformer. 1-6m/min, Energy-saving power.

4

Surface treatment

Computer white electrostatic powder coating,hard wear and scratch resistant

B

Drying furnace cover

The heating area size is L1200mm×W700mm×H550mm.

1

UV Lamp

It uses 3pcs 3KW UV lamps with transformer and capacitance. Each lamps has three choose: strong,medium,week. The lamps use the Beijing halogen tube with the reflector,tube,trigger.

   2

The Wind Motor

It use one set of professional 1.1KW 380V,1400R/min high speed centrifugal fans. The volume of air is 1200m3/hours. 1 set. The inner is equipped with the exhaust pipe which can reduce the temperature of product and the inner of furnace,improve the service time of the lamp.

3

Electronic Controller

The transformer of UV lamps is equipped with the energy storage capacitance. Each UV lamp is equipped with a time timer to record the usage.The temperature-controller uses the Taiwan Berme digital display temperature controller.



Product Pictures:

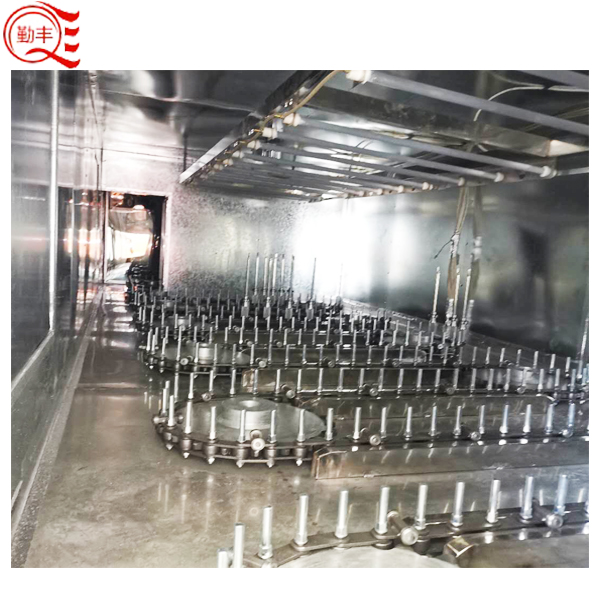

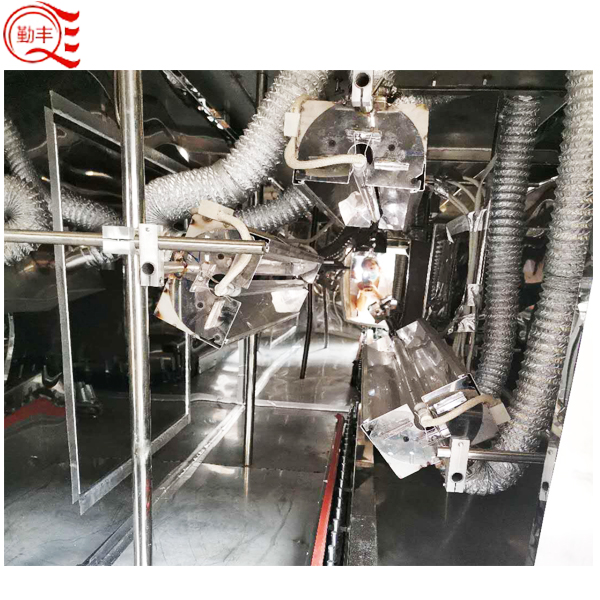

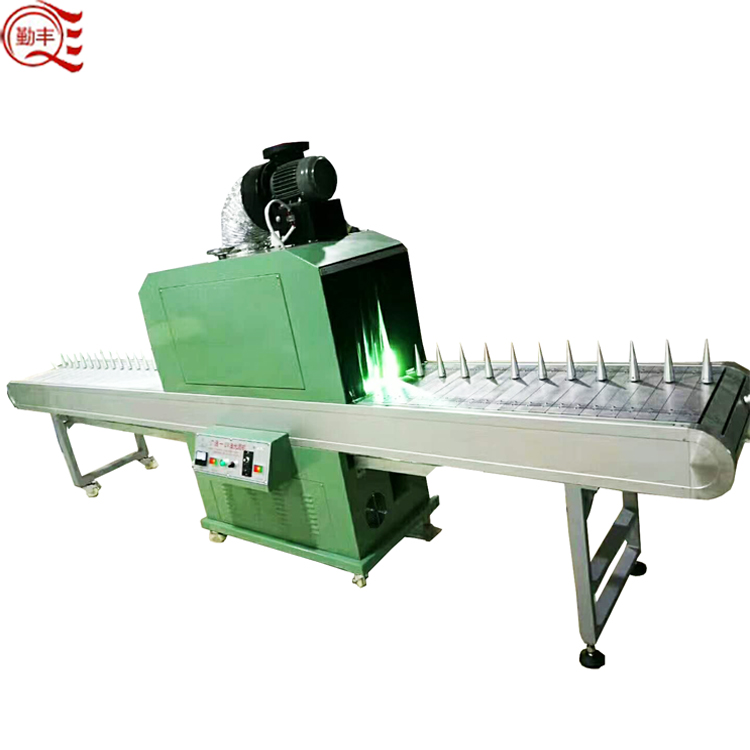

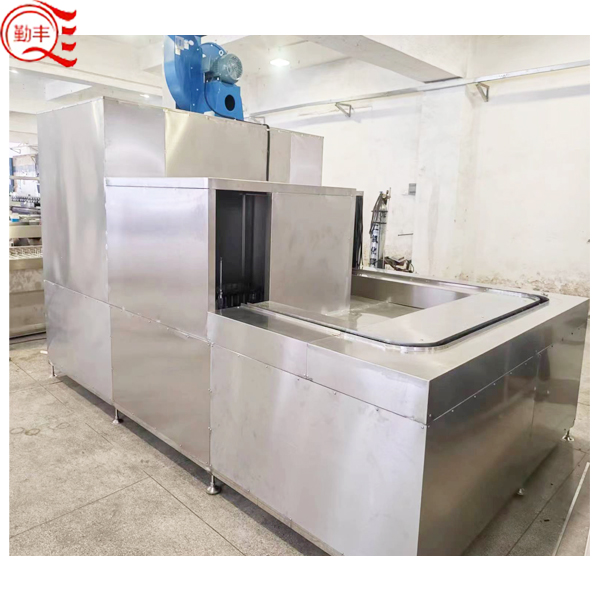

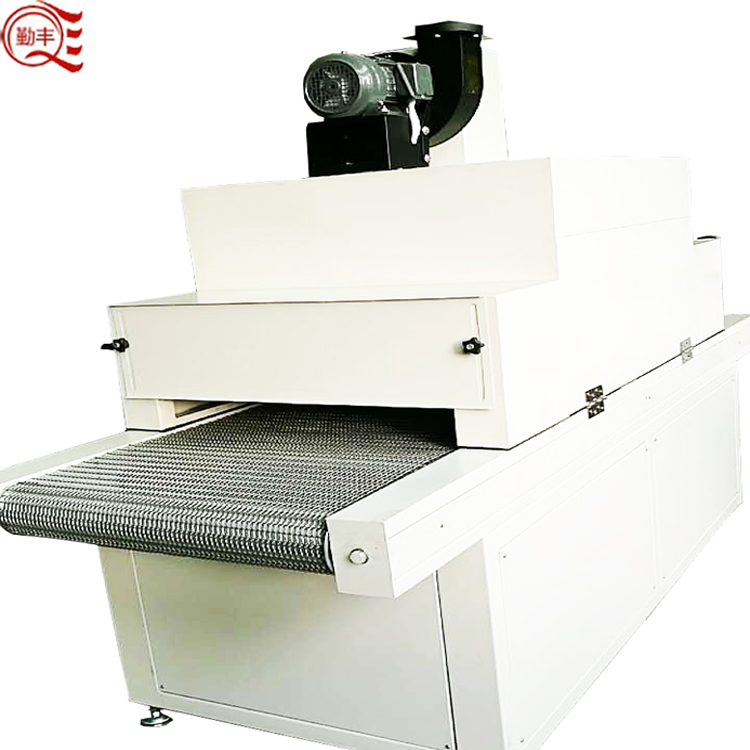

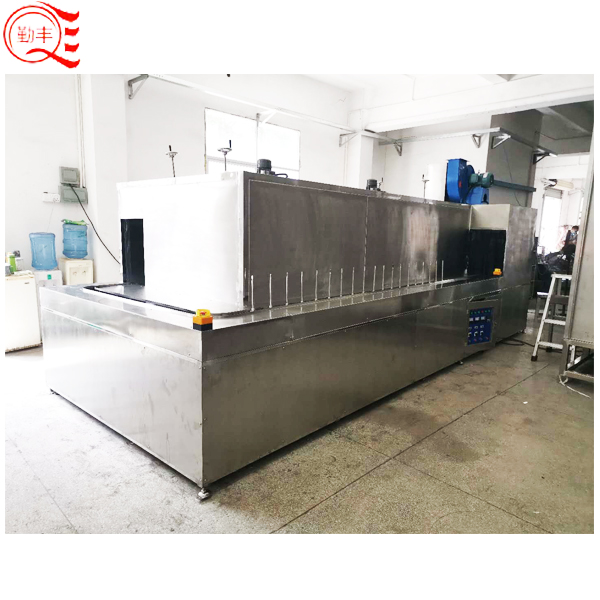

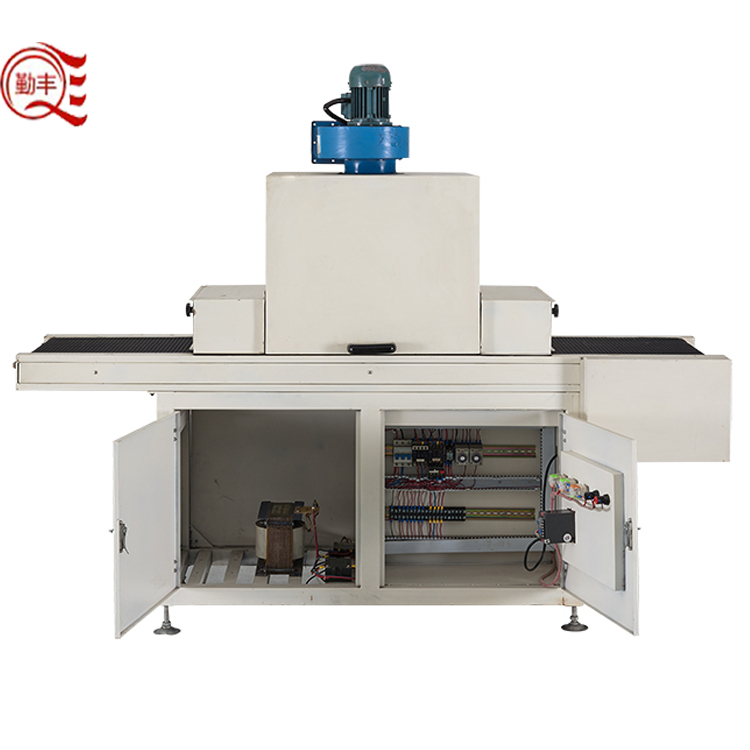

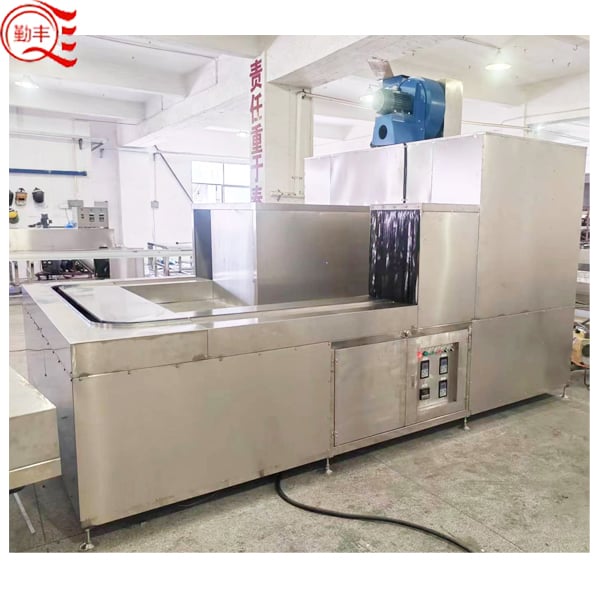

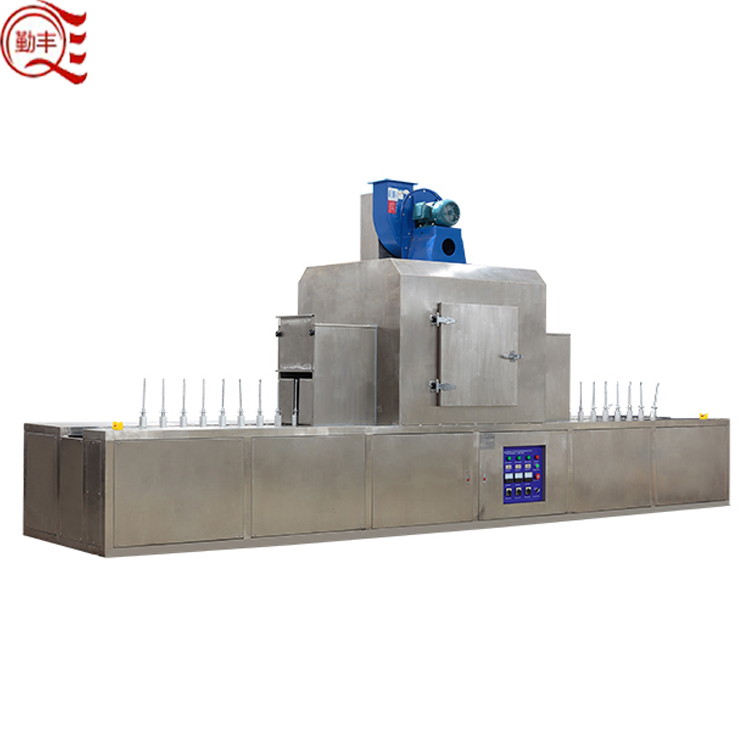

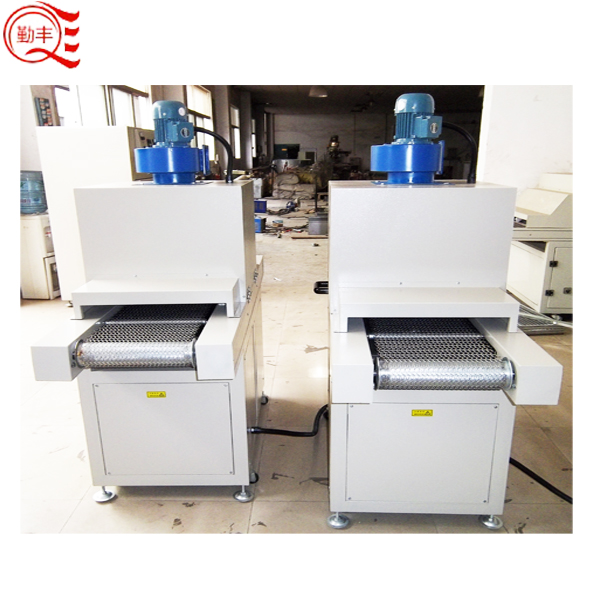

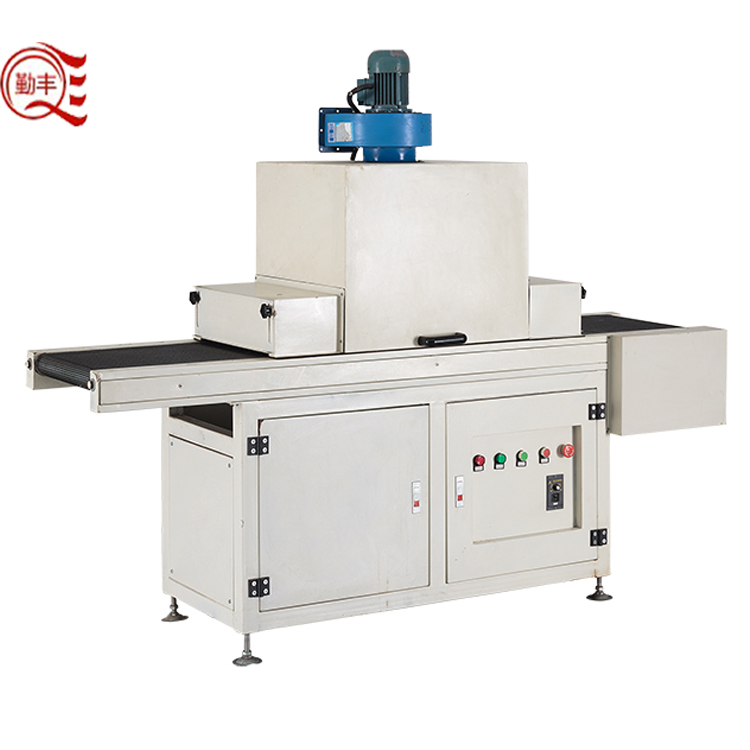

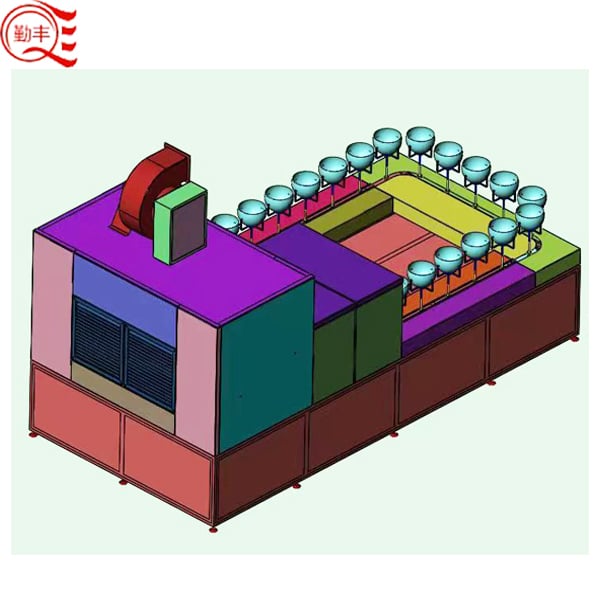

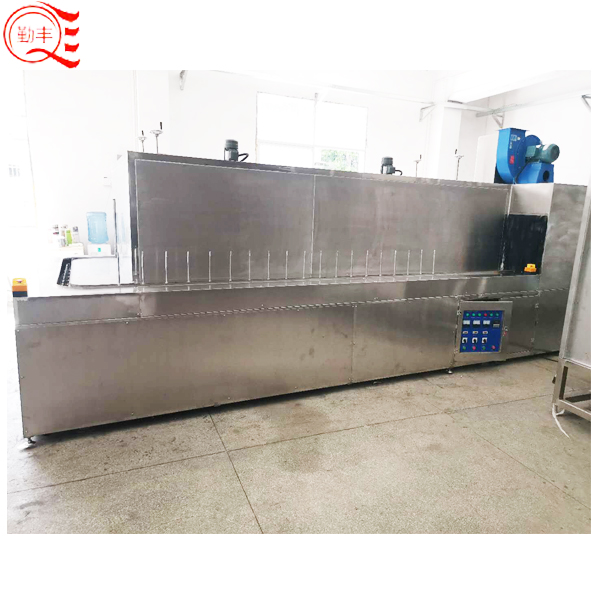

 IR+UV furnace-4.jpgIR+UV furnace-5.jpgIR+UV furnace-6.jpgIR+UV furnace-7.jpgIR+UV furnace-8.jpgUV oven.jpgUV furnace.jpgUV oven-2.jpgUV oven-3.jpgUV oven-4.jpg



Application:

UV curing has been widely adopted in many industries including automotive, telecommunications, electronics, graphic arts, converting and metal, glass and plastic decorating.



FAQ

Question 1: I don't know anything about the machine. Will you provide the technical support?

Answer: Sure. Every machine will be test before delivery. We will make sure there is no problem for the machine while it leave our factory.
When the equipment is small and standard ,We can send the detailed user manual and video to
help you install and operate the equipment. Of course,You can arrange 2-3 smart workers to come to our factory to learn how to operate the machine.

If the machine is very big and long,When the machine arrives your factory, we will send the experts to your factory to help for installation and commissioning. Operation training will be provide. Maintenance tips will be given and enough spare parts be provided.
Also, we provide consulting service for creating the proper facilities for running the machine.

Question 2: What is UV Curing? ?

Answer:
Ultraviolet curing (commonly known as UV curing) is a photochemical process in which high-intensity ultraviolet light is used to instantly cure or “dry” inks, coatings or adhesives.  Offering many advantages over traditional drying methods, UV curing has been shown to increase production speed, reduce reject rates, improve scratch and solvent resistance, and facilitate superior bonding.
