Automatic UV Spray Paint Line for Cosmetic Bottle

Automatic UV Spray Paint Line for Cosmetic Bottle

  • Overview

  • Inquiry

  • Related Products

Brand: Xinqinfeng

Presenting the Automatic UV Spray Paint Line for Cosmetic Bottle by Xinqinfeng, your solution that is one-stop for spraying this is certainly cosmetic requirements.
This method this is certainly built that is revolutionary cutting-edge technology that delivers an exact and constant spray pattern on aesthetic containers. The UV this is certainly automatic paint line is made to generally meet because of the rigorous needs related to cosmetics industry. Its top-quality construction guarantees that it could withstand the working problems that are harshest, delivering performance that is superior keeping utmost accuracy and accuracy.
The Xinqinfeng Automatic UV Spray Paint Line for Cosmetic Bottle is straightforward to install and easy to focus. With its user-friendly software, just a click of a switch is all you will need to start the process this is certainly spraying. This implies you could start utilizing it right out of the box, eliminating the need for a professional to oversee the operation and installation.
The paint line's automated system also helps to make sure there is minimal mistake that is human resulting in consistently high-quality results, every time. The unit's effectiveness and accuracy are available possible by using higher level technology that guarantees perfection in spraying no matter batch size.
The Automatic UV Spray Paint Line for Cosmetic Bottle by Xinqinfeng is designed to appeal to the diverse needs for this cosmetics industry. The goods could possibly be configured and individualized to meet up along with your particular requires whether you might need small-scale or large-scale publishing. This technique versatility helps to ensure that no matter that is real assembling your shed demands are, Xinqinfeng got you covered.
Moreover, the paint line uses UV this is certainly high-quality that is environmentally friendly and reduces waste. Unlike conventional paint, there's no emission of volatile substances being natural, that are recognized to contribute to polluting of this environment. The employment of UV paint also means that the method that is drying faster and much more energy-efficient, further reducing your running expenses.


Product Description

Production Features:


  • Operate easy and simple,single person can operate it

  • Mini type,Occupy small area

  • Automatic spraying,high efficiency, Save labor cost

  • Factory Price,Competitive price

  • High quality,One year Warranty

Product Specification:





The external dimension of the Rack

The dimension: L2900mm x D1100mm x H850mm (1 set)


     The rack

The rack is made of welding 50# square box section. The bottom of rack has the truckle and foot cup. The height is adjustable. The rack is sealed by the plate,The structure is compact and generous.


The Conveyor Chain

The conveyor chain use special chain of automatic line. the pitch is 50.8mm,the total length is 6.4m. Each two pitch distance use one special fixture for the product.


The Motor

The motor use Taiwan imported 0.5HP gear reducer motor to transmission. The speed of

chain is adjusted by adopting 1HP ZONCN frequency transformer. The chain speed is adjustable within 0.1m/min- 5m/min. The frequency control of the motor speed  is energy saving.


The Friction Rotation Devise

It has two sets of special friction system, The motor adopts 200W electronic speed regulating motor. It can positive and negative rotation.


The Electronic Control

The electronic control is mainly use China famous brand CHINT brand.The indicator light, the switch,relay and contacts are equipped with the overload protection.The parts of Electronic Control is placed in the below of racks.


The surface treatment

Computer white electrostatic powder coating


Paint and Oil Feeding System

1. The automatic spray-gun use Japan ANEST IWATA WA-101 automatic spray gun. The caliber is 1.0mm. The qty of the guns is six. A set of adjustable support brackets is equipped.

2. Two sets of trisection diaphragm pumps are equipped.

3. It is equipped with relative oil pipe, Air pipe, pressure regulating valve,oil-water separator and a set of electric magnetic Valve.

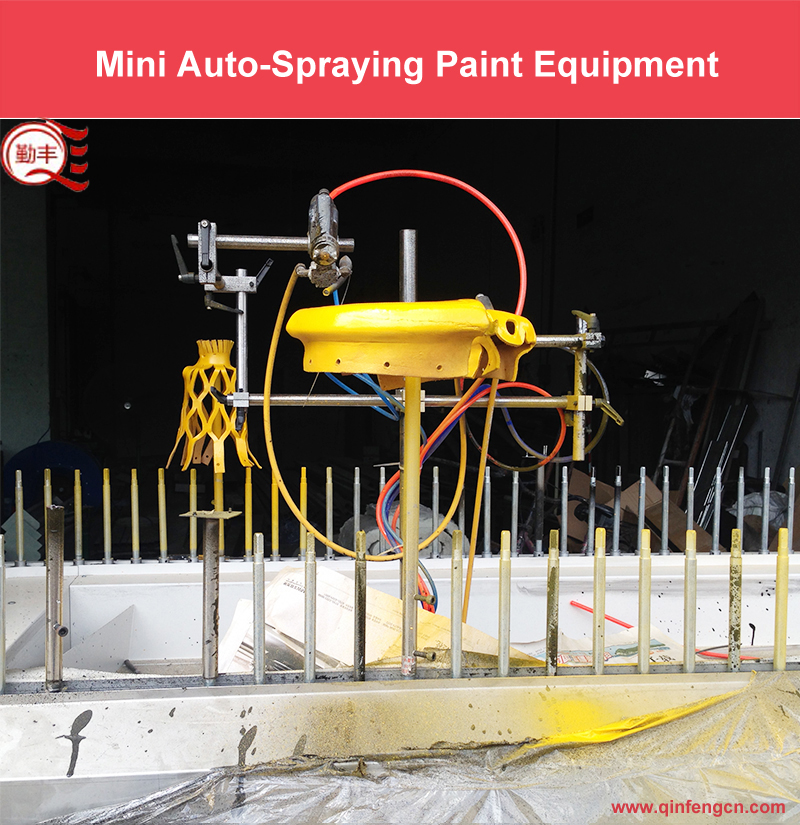

Product Pictures:




The Mini automatic spraying machine or Mini automatic spraying painting Line is wildly used in the field of plastic,Metal,stainless,glass,wood etc round,cylindrical,conical shapes or other irregular ,small type shapes' furface spraying,such as cellphone shell,glass cup, lamp shell,helmet,bottles,holder,cosmetics lid etc project.


Question 1: I don't know anything about the machine. Will you provide the technical support?

Answer: Sure. Every machine will be test before delivery. We will make sure there is no problem for the machine while it leave our factory.
When the equipment is small and standard ,such as five axis spraying equipment,mini spraying line, small tunnel furnance or ovens,spraying power booth,curing furnace etc, We can send the detailed user manual and video to

help you install and operate the equipment. Of course,You can arrange 2-3 smart workers to come to our factory to learn how to operate the machine.

If the machine is spraying line and big,When the machine arrives your factory, we will send the experts to your factory to help for installation and commissioning. Operation training will be provide. Maintenance tips will be given and enough spare parts be provided.
Also, we provide consulting service for creating the proper facilities for running the machine.

Question 2: What is price of the machine?

Answer: Normally, Most of the machine is customized for our customer. If you have any drawing or any information on specification of the machine, please send to us for quote.
If you are totally new in this area, please send us the detail infos about your workpiece as blow:

1. The maximum size of workpiece:

2. The max weight of workpiece:

3. The output per month/per day:

4. Heating Temperature and Time(If you need the drying equipment):

5. Color changing(How many colors? How long will it take to change other colors ?)

6. Spraying process(What paint will you use? Spraying times?  )

7. The workshop size for the equipment:

8. Some work-piece pics are needed:

9. The power: industrial three phase voltage

10. Other requirements from customer:
