Five-Axis Spraying Paint Machine

Five-Axis Spraying Paint Machine

  • Overview

  • Inquiry

  • Related Products

Brand: Xinqinfeng


Launching this new Xinqinfeng Five-Axis Spraying Paint Machine, a device that is pc is obviously state-of-the-art and it is designed to provide quality this is certainly superior finishes with precision and accuracy. This method is wonderful for just about any application this is certainly needs that are commercial that is top-notch results, from automotive and aerospace to furniture creating and construction this is certainly architectural.
The Xinqinfeng Five-Axis Spraying Paint Machine has an array of advanced features that make it noticed off their paint devices available. Firstly, this machine is sold with a capability this is certainly remarkable is five-axis. The five-axis function permits more efficient and painting this might be users being certainly precise are giving freedom and control within the spraying procedure.
Another feature that is most certainly key of device is its capacity to manage paint this is certainly many differs from the others. This can be obviously high-level technology the Xinqinfeng Five-Axis Spraying Paint machine can spray a quantity quickly of coatings – including solvent-based and paints which can be water-based along with lacquers and primers as a result of its spraying. And thus, users can perform a range of finishes, from glossy and finishes which are matte textured and ones that are patterned.
The Xinqinfeng Five-Axis Spraying Paint Machine might be ergonomically created for user convenience alongside its impressive functionality. It comes down with a nozzle this is certainly fluid this is certainly fully adjustable, making this fairly simple to select the spray this is certainly perfect and viscosity. The gear even provides an array of adjustable settings to accommodate spray this is certainly different needs, as well as a software that is user-friendly ensures operation this is certainly straightforward.
The Xinqinfeng Five-Axis Spraying Paint unit was built to final in relation to reliability and durability. It really is in reality made from top-notch materials and features a construction that is robust can withstand the destruction of daily usage. The machine might be very easy to maintain and clean, making sure it shall continue to make use of top performance for quite some time as time goes by.




Product Description

Production Features:

The five axis reciprocating spraying machine with air spraying system will help you get a good coating film and reduce the manual cost. The details of automatic five axis spraying  machine  are as follows.



1. This machine is widely used in many industry. Generally speaking , standard type of this machine has two product tray. If you want to buy a machine with four product tray, then you will get double yield under the premise of high quality coating.



2. It is easy to debug the machine. You can finish debugging for usual product in 15 minutes. The program writing of machine is regard one plane of product as a program segment. When you finish setting the start point , end point and the spraying speed, then you have finished a program segment. After finish every program of plane, then the complete program is finished.



3.This machine has continuous spraying method and step spraying method.



4.The atomization and sector, painting output of spray gun can be controlled by computer. When the machine begin to spray , the spray gun can blow, in order to blow dust.



5.It is easy to use this machine ,and you can store 160 programs of product. The machine operated by fully digital computer.

Product Specification:

SPECIFICATIONS FOR FIVE AXIS MACHINE

            Control system



1.The PLC use TAIWAN FATEK Brand
2. The HMI use Beijing MCGS Brand 7 inch Color touch screen
3.The air switch use the CHINT brand components

4.The switching power supply use the Taiwan MEANWELL power

5.The Proximity switch and reply use the Japan OMRAON brand

Aluminium profile module

Our own mold



            Drive system

The servo motor driving use Taiwan DELTA brand


Transmission system

1.Aluminum profile module
2.Taiwan HIWIN Linear guide rail
3.Taiwan HIWIN Silent slide
4.Precision synchronous wheel
5.Italy MEGADYNE synchronous belt with steel wire

6.Rack and pinion drive
7.positioning accuracy difference ±1mm

Product exchange platform

1.Precision splitter:Flange Model 140/180DF, high precision, high speed
2.The motor adopts Taiwan imported WANSIN drive motor

3.tricrystal transducer control

Product rotation platform

1..Precision splitter
2.Can be 90 degrees, 180 degrees rotation, continuous rotation





       Spray gun

1.Automatic spraying guns:Japan ANEST IWATA brand WA-101 series automatic spraying. the calibre is 1.0mm

2.The power use Janpan SAMSR stepping motor

3.The degree of horizontal travel for the gun: 0-180 degree

Programming mode

Off line programming

Power supply

4KW



Product Pictures:

5 -1.jpg

spray paint machine -1 (1).pngspray paint machine -1 (2).png

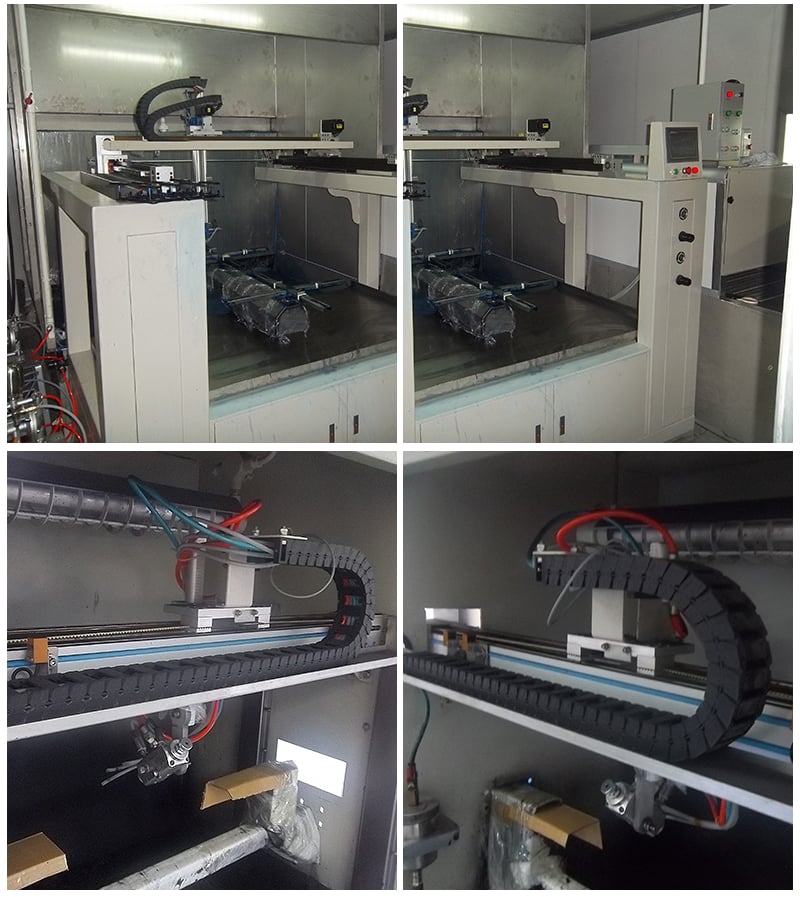

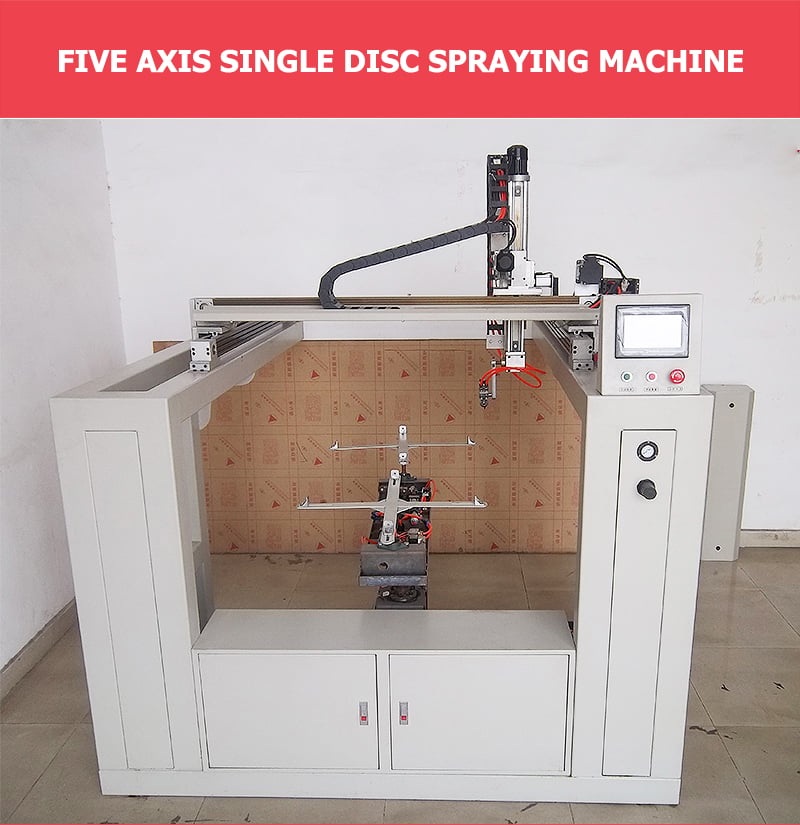

Detail Display2.jpg

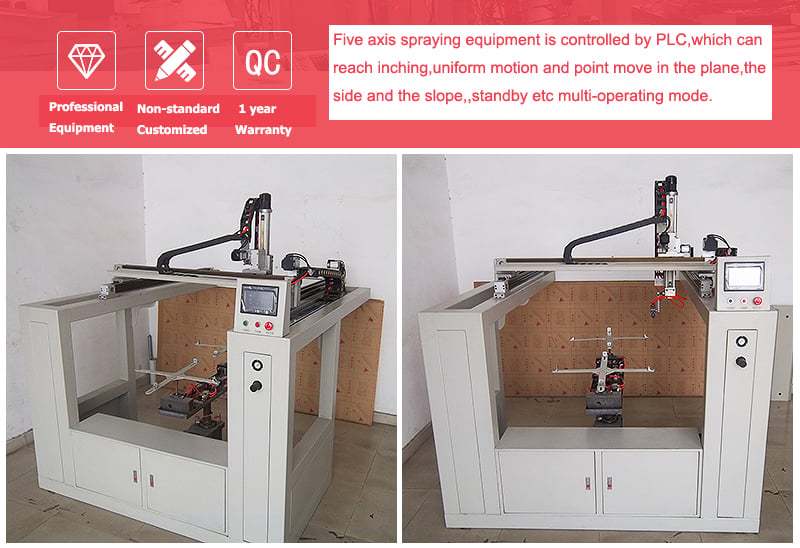

Detail Display3.jpg







Application:

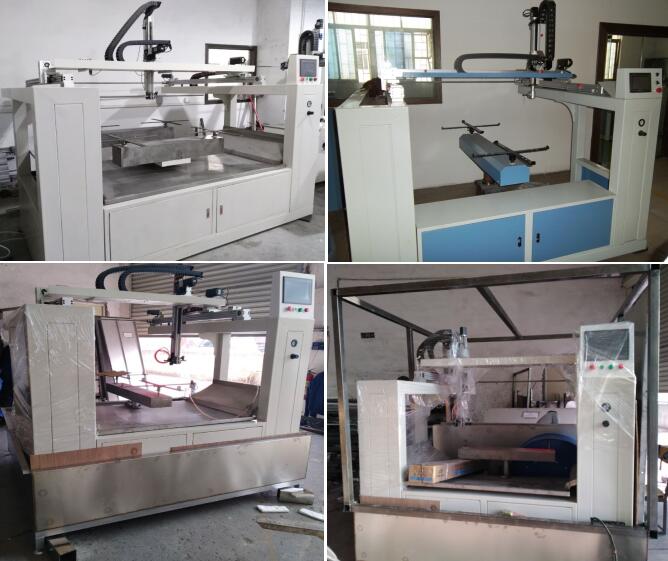

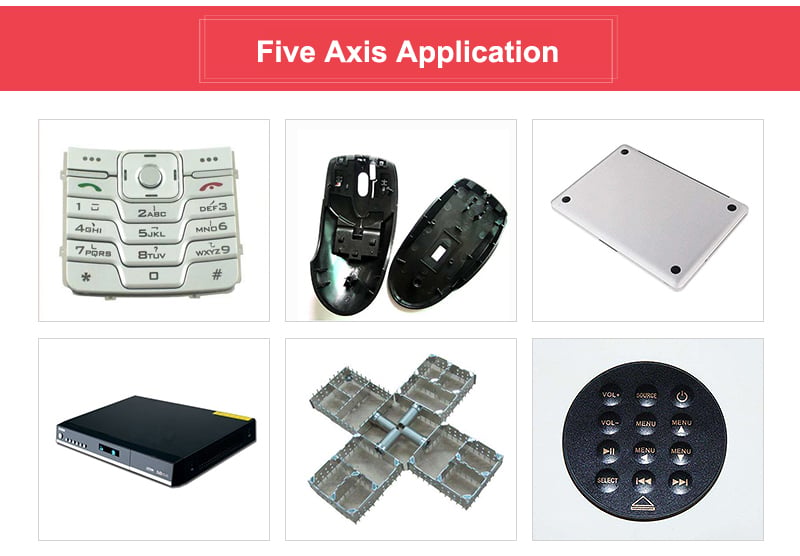

The five axis automatic spraying reciprocating machine is wildly used in the field of plastic, electronics,hardware handicraft, TV shell,computer panels,glass,toys, woodwork,magnet ring etc, also suit for large flat parts(such as door,glass) etc precision surface spraying. The spraying process can reach the surface spraying or multi-surface spraying. Multi-axis linkage spraying or one axis reciprocating movement is OK. The parameter is adjustable flexible.the programming is convenient and fast.
